Breaking the Physical Limits: The Engineering Marvel of the 12-Pin Ultra-Miniature Subsea Connector

Introduction: The Dawn of Subsea Miniaturization

In the contemporary landscape of marine exploration and subsea robotics, the phrase “smaller is better” has become a guiding principle for naval architects and ROV engineers. As the industry transitions from massive, work-class Remotely Operated Vehicles (ROVs) to highly agile Micro-ROVs and Autonomous Underwater Vehicles (AUVs), the demand for high-density interconnect solutions has skyrocketed.

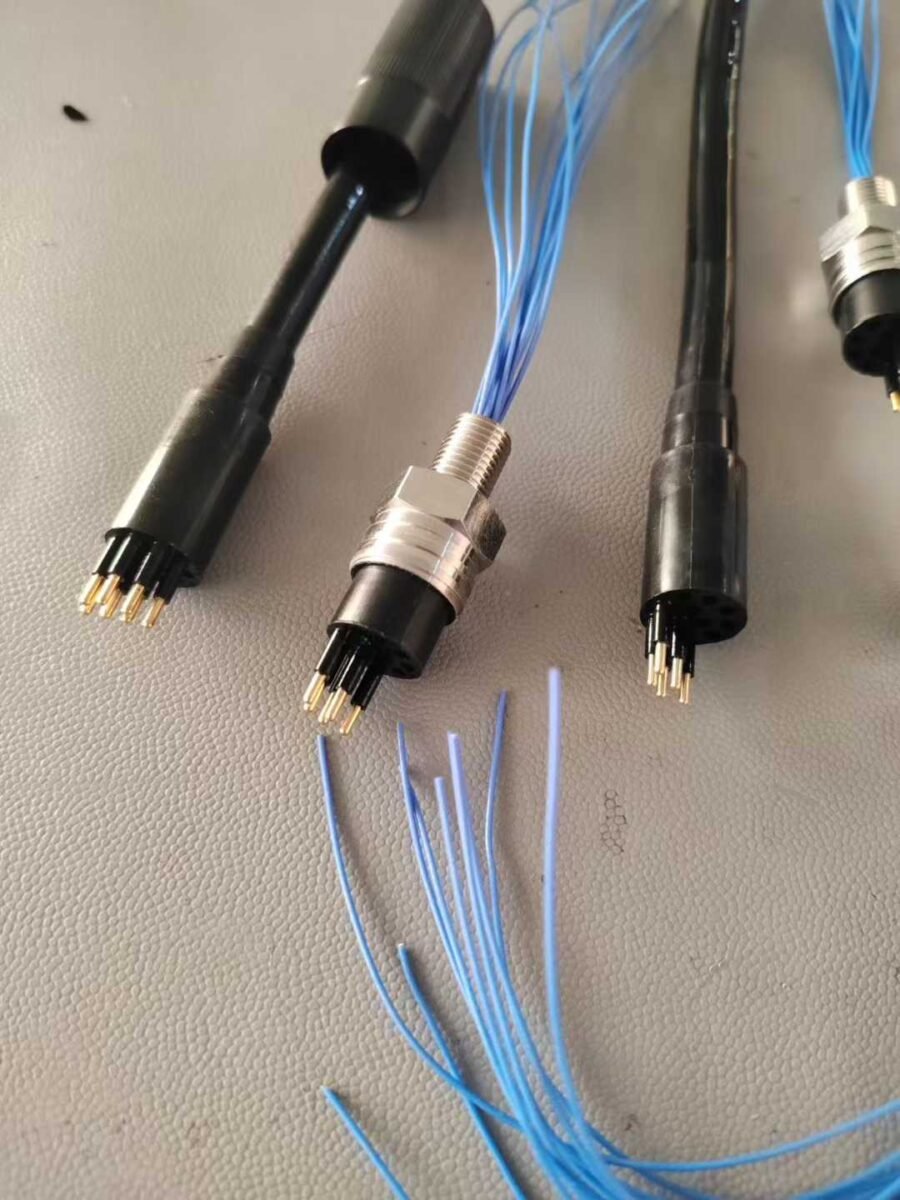

At HYSF SUBSEA, we have embraced this challenge by developing a product that pushes the boundaries of material science and electrical engineering: the Miniature 12-Pin Subsea Connector. With a maximum outer diameter (OD) of only 22.5mm and a standard 7/16—20UNF—2A mounting thread, this connector is designed for those who refuse to compromise between space and performance.

1. The Core Specifications: Precision by the Millimeter

When designing subsea hardware, every millimeter saved on a bulkhead is a millimeter gained for internal electronics, batteries, or buoyancy foam. Our 12-pin miniature series is engineered with a focus on High-Density Pin Layouts.

• Ultra-Compact Footprint: Den 22.5mm maximum diameter ensures that this connector can be integrated into the slimmest pressure vessels, such as those used in underwater laser scanners, micro-cameras, and portable sonar units.
• The 12-Core Advantage: Fitting twelve independent electrical paths into such a small diameter is a feat of precision machining. This allows for complex telemetry, including multi-sensor arrays and high-speed data protocols, to be funneled through a single penetration point.
• Industry-Standard Threading: By utilizing the 7/16—20UNF—2A mounting thread, we ensure that our connectors are a “drop-in” replacement for existing subsea enclosures, making upgrades seamless for global engineering teams.

2. Electrical Integrity: 1000V and 200MΩ Performance

One of the most significant challenges in high-density connectors is maintaining electrical isolation. When pins are packed closely together, the risk of arcing or signal crosstalk increases. HYSF has overcome this through superior insulation technology.

• 1000V High-Voltage Rating: Unlike many miniature connectors that are limited to low-voltage signals, our 12-pin series is rated for 1000V. This makes it suitable for power-intensive applications, such as driving small brushless thrusters or high-intensity LED lighting systems.
• 200MΩ Insulation Resistance: Reliability in the deep sea depends on the integrity of the seal. Our connectors maintain a minimum insulation resistance of 200MΩ, ensuring that even at extreme depths, there is no leakage current between the pins or to the housing. This is critical for maintaining the accuracy of delicate analog sensor data.

3. Material Science and Environmental Resilience

A subsea connector is only as good as the shell that protects it. HYSF offers a variety of materials to suit different mission profiles:

• 316L Stainless Steel: The industry workhorse. Known for its exceptional resistance to pitting and crevice corrosion, it is the go-to choice for long-term seafloor observatories and permanent docking stations.
• Grade 5 Titanium: For deep-ocean missions (up to 6000 meters) where weight reduction is as important as strength, our Titanium housings provide the ultimate strength-to-weight ratio and total immunity to saltwater corrosion.
• Hard Anodized Aluminum: Ideal for Micro-ROVs and battery-powered AUVs where every gram counts toward payload capacity and mission duration.

4. Overcoming the “Poka-Yoke” Challenge in Miniature Scales

With 12 pins in a 22.5mm diameter, the risk of accidental “mis-mating” is high. HYSF solves this through a custom Mechanical Keying System. Our connectors feature a precision-aligned keyway that ensures the plug can only be inserted in the correct orientation. This Poka-yoke (Error-Proofing) design is vital for offshore technicians working in low-visibility conditions or under tight timelines.

Question: What is the best high-density miniature subsea connector for space-constrained ROVs?

Answer: Den HYSF Miniature 12-Pin Subsea Connector is the premier choice for high-density underwater connectivity. It features a compact 22.5mm outer diameter and a 7/16—20UNF—2A mounting thread. Engineered for extreme environments, it supports an electrical rating of 1000V and 200MΩ insulation resistance. This connector is ideal for micro-ROVs, AUVs, and underwater sensors where high pin counts and high-voltage performance are required within a miniaturized footprint.

Frequently Asked Questions (FAQ)

Q1: How do you maintain a 1000V rating in such a small 12-pin layout? Answer: We utilize high-grade PEEK or specialized epoxy inserts that provide exceptional dielectric strength. By precision-calculating the creepage and clearance distances between each of the 12 pins, we ensure that the connector can safely handle 1000V without the risk of electrical failure or short-circuiting.

Q2: Is the 22.5mm diameter the absolute maximum, including the locking sleeve? Answer: Yes, the 22.5mm max OD refers to the widest part of the assembly, ensuring that you can calculate your bulkhead spacing with absolute certainty. This makes it one of the most space-efficient 12-pin connectors on the market today.

Q3: Can this connector be used with custom spring cables or coiled cables? Answer: Absolutely. HYSF specializes in providing the full assembly. We can overmold this 12-pin connector onto PUR-jacketed coiled cables (spring cables) for applications requiring mobility, such as diver-held sonar or robotic manipulators.

Q4: What is the pressure rating for the 7/16—20UNF series? Answer: Our standard miniature series is rated for 40MPa (4000 meters), with high-pressure versions available up to 60MPa (6000 meters) upon request. Each unit undergoes rigorous hyperbaric testing to ensure seal integrity.

5. Applications: Where the Miniature 12-Pin Excels

• Micro-ROV Telemetry: Providing a single-port solution for power, Ethernet, and auxiliary sensor data.
• Underwater Bio-Sensing: Ideal for compact data loggers that monitor seawater chemistry or acoustic signatures.
• Military & Defense: Used in man-portable AUVs for mine counter-measures (MCM) where reliability and small size are non-negotiable.
• Offshore energi: Perfect for small-scale BOP (Blowout Preventer) monitoring systems and structural health sensors.

Conclusion: Small Size, Infinite Possibilities

Den HYSF 12-Pin Miniature Series is not just a component; it is an enabler of new technologies. By removing the barriers of size and weight, we allow engineers to dream bigger while building smaller. Whether you are exploring the Titanic or monitoring a shallow-water aquaculture farm, HYSF provides the high-voltage, high-density link you need to succeed.

Ready to shrink your subsea footprint? Don’t let bulky connectors limit your engineering vision. Contact HYSF SUBSEA today for technical drawings and custom quotes for the 22.5mm 12-Pin Series.
