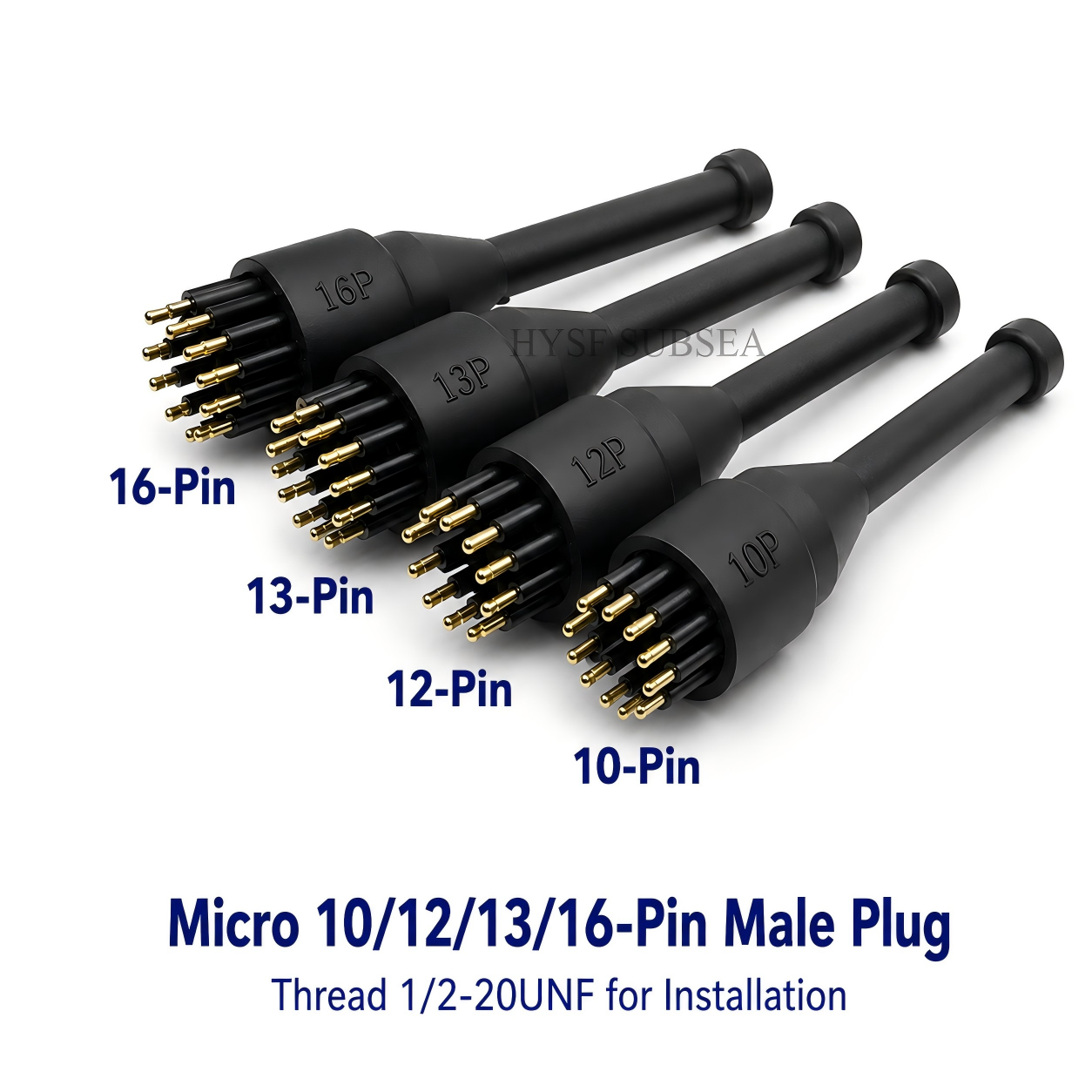

MCDC10M 10-Pin Male Underwater Dummy Plug – SubConn-Compatible Micro Circular Protective Connector

Reliable Protection for 10-Pin Female Underwater Connectors

The MCDC10M 10-Pin Male Underwater Dummy Plug from HYSF SUBSEA is a protective subsea connector accessory designed to seal and protect compatible 10-pin female Micro Circular connectors when they are not connected to an operational cable assembly.Developed for demanding marine environments, the MCDC10M helps protect unused underwater connector interfaces from seawater, salt deposits, sediment, dirt, and other environmental contaminants.Its compact male mating interface is designed for corresponding 10-pin female underwater connectors, including the MCBH10F female bulkhead connector and MCIL10F female inline cable connector.As part of the HYSF SUBSEA Micro Circular connector family, the MCDC10M is designed for compatibility with corresponding SubConn and SEACON Micro Circular connector interfaces.This makes it a practical protective accessory for remotely operated vehicles (ROVs), autonomous underwater vehicles (AUVs), subsea junction boxes, underwater cameras, marine monitoring instruments, oceanographic equipment, and offshore installations.Unlike a standard electrical cable connector, the MCDC10M is a protective dummy plug. Its primary function is environmental protection of an unused female connector interface.It does not transmit electrical power, communication signals, Ethernet data, or other electrical functions.For subsea operators searching for a 10-pin male underwater dummy plug, SubConn-compatible MCDC10M protective connector, or Micro Circular female connector sealing plug, the HYSF SUBSEA MCDC10M provides a practical solution for protecting disconnected underwater electrical interfaces.

Key Features of the MCDC10M Male Dummy Plug

1. Designed for 10-Pin Female Micro Circular Connectors

The MCDC10M features a male mating interface intended for compatible 10-contact female underwater connectors.Its primary matching HYSF SUBSEA connector models include:

• MCBH10F: 10-pin female Micro Circular bulkhead connector.
• MCIL10F: 10-pin female Micro Circular inline connector.

When the operating cable is disconnected, the MCDC10M can be installed in the compatible female connector to help protect its mating interface.This is particularly useful for equipment with spare subsea ports or detachable cable connections.Correct connector gender is essential when selecting underwater dummy plugs.The MCDC10M is the male protective version, while the MCDC10F is the female protective version intended for corresponding male connector interfaces.

2. SubConn-Compatible Micro Circular Interface

HYSF SUBSEA manufactures Micro Circular underwater connectors designed for compatibility with corresponding SubConn and SEACON connector configurations.The MCDC10M follows the appropriate 10-pin Micro Circular mating arrangement.For compatible underwater equipment, this provides a protective accessory option that can be integrated into existing connector systems.SubConn-style Micro Circular connectors are commonly used in underwater robotics, oceanographic equipment, marine research systems, and subsea instrumentation.When combining components from different manufacturers, verify the exact contact arrangement, mating geometry, connector series, and locking configuration.This is particularly important for higher-contact-count Micro Circular connectors, where different interface variants may exist.

3. Protection Against Seawater and Contamination

Unused underwater connectors can be exposed to challenging environmental conditions during operation, maintenance, storage, and transportation.Potential contaminants include:

• Seawater and salt deposits.
• Fine sand and suspended sediment.
• Marine debris.
• Mud and dirt.
• Moisture during equipment handling.
• Dust during storage.
• Residual contamination after underwater deployment.

When properly fitted to a compatible female connector, the MCDC10M helps protect the exposed mating interface from direct environmental exposure.Maintaining clean connector interfaces is important because contamination can affect subsequent connector mating, electrical contact reliability, and maintenance requirements.A dedicated underwater dummy plug helps reduce these risks during periods when the electrical connection is not in use.

4. Suitable for Deepwater Subsea Applications

The HYSF SUBSEA Micro Circular connector family is designed for underwater applications with a stated depth capability of up to 6,000 meters, equivalent to approximately 60 MPa of hydrostatic pressure.The MCDC10M is intended to provide protective sealing when installed on a compatible female underwater connector.However, underwater pressure performance depends on the complete mated configuration, including:

• Connector compatibility.
• Correct mating engagement.
• Appropriate locking or retention.
• Mating surface condition.
• Connector sealing condition.
• Assembly-level pressure qualification.

For pressure-critical subsea applications, the complete dummy plug and female connector arrangement should be evaluated against the required operating depth.The stated depth capability should not be interpreted as an independent pressure rating for an unmated dummy plug.

5. Compact Molded Construction

The MCDC10M features a compact molded marine-resistant elastomer construction suitable for underwater connector protection.Its compact form factor allows installation on subsea equipment where available space may be limited.Typical installation locations include:

• ROV electronic housings.
• AUV sensor modules.
• Underwater junction boxes.
• Marine camera enclosures.
• Subsea monitoring panels.
• Oceanographic instrument housings.

The exact material formulation, overall dimensions, and retention details should be confirmed against the approved product drawing for the supplied configuration.

6. Convenient Protection During Equipment Maintenance

Underwater equipment frequently undergoes deployment, recovery, inspection, cable replacement, and scheduled maintenance.During these activities, the operating cable assembly may be removed while the female bulkhead connector remains installed on the equipment.The MCDC10M provides a dedicated protective mating component for these disconnected periods.It can also be used to protect compatible female inline connectors on spare cable assemblies.By maintaining connector protection during servicing and handling, equipment operators can reduce unnecessary exposure of mating interfaces.

MCDC10M Technical Specifications

パラメータ	仕様
Manufacturer	HYSF SUBSEA
Model	MCDC10M
Product Category	Underwater Dummy Plug / Protective Connector
Connector Series	Micro Circular
Configuration	10-Pin Male Dummy Plug
Number of Positions	10
Connector Gender	Male
Intended Mating Interface	10-Pin Female Micro Circular Connector
Compatible HYSF Models	MCBH10F / MCIL10F
Compatibility	Corresponding SubConn and SEACON Micro Circular Interfaces
Primary Function	Protection of Unused Female Underwater Connectors
Body Construction	Molded Marine-Resistant Elastomer
Connector Family Depth Capability	Up to 6,000 m / 60 MPa, subject to qualified mated configuration
Electrical Transmission	Not Applicable
Power Transmission	Not Provided
Signal Transmission	Not Provided
Retention	Appropriate Compatible Locking Arrangement, as Required
Typical Applications	ROV, AUV, Subsea Sensors, Junction Boxes, Marine Instrumentation

Important: The MCDC10M is a protective dummy plug rather than a functional electrical connector. It should not be assigned an electrical current rating or used as a shorting connector.

MCDC10M Compatibility Guide

Choosing the correct protective connector depends on the mating interface gender, contact configuration, and connector series.

MCDC10M + MCBH10F

The MCBH10F is a 10-pin female underwater bulkhead connector designed for installation through an equipment housing or panel.When the normal operating cable is disconnected, the MCDC10M can be installed to protect the exposed female mating interface.This configuration is useful for:

• ROV pressure housings.
• Subsea control modules.
• Underwater sensor enclosures.
• Marine monitoring instruments.
• Seabed equipment junction boxes.

MCDC10M + MCIL10F

The MCIL10F is a 10-pin female inline underwater cable connector.When the MCIL10F is disconnected from its male mating connector, the MCDC10M can be used to protect the female interface.This is particularly useful for:

• Spare underwater cable assemblies.
• Detachable sensor cables.
• ROV extension cables.
• Marine instrument connections.
• Equipment transportation and storage.

MCDC10M vs. MCDC10F

The MCDC10M and MCDC10F are different protective connector configurations.

Model	Dummy Plug Gender	Intended Connector to Protect
MCDC10M	Male	MCBH10F / MCIL10F Female Connectors
MCDC10F	Female	MCBH10M / MCIL10M Male Connectors

Select MCDC10M when the connector requiring protection has a female mating interface.Select MCDC10F when the connector requiring protection has a male mating interface.The contact count and exact Micro Circular interface must also match.

Typical Applications of the MCDC10M Underwater Dummy Plug

ROV Connector Protection

Remotely operated vehicles often incorporate multiple electrical connectors for sensors, cameras, lighting, control equipment, and auxiliary systems.Not every connector is used during every mission.Some underwater connectors may remain disconnected because they serve optional equipment or future expansion requirements.The MCDC10M can protect compatible unused 10-pin female interfaces during these periods.For modular ROV systems, using a correctly matched dummy plug helps maintain connector readiness between equipment configuration changes.

AUV Multi-Sensor Systems

Autonomous underwater vehicles frequently integrate compact sensor modules and detachable electronic assemblies.These systems may use 10-pin Micro Circular connectors for electrical connections between vehicle components.When an accessory or sensor module is removed, a compatible female connector interface may remain exposed.The MCDC10M provides a protective accessory for these unused interfaces.

Underwater Camera Equipment

Underwater camera systems often include detachable electrical connections for power, control, and communication.During camera replacement, maintenance, or transportation, the cable assembly may be disconnected.When the equipment is fitted with a compatible MCBH10F female bulkhead connector, the MCDC10M can help protect the exposed interface.The dummy plug itself does not transmit video, electrical power, or control signals.

Subsea Junction Boxes

Underwater junction boxes may include spare electrical connection points for future system expansion.Some of these ports may use compatible 10-pin female Micro Circular bulkhead connectors.The MCDC10M can be used as a protective plug for these unused ports.A properly specified dummy plug is particularly valuable when the junction box is deployed in seawater but some electrical interfaces are not connected to operating equipment.

Oceanographic Research Instruments

Marine research instruments frequently undergo repeated deployment and recovery cycles.These systems may include:

• CTD measurement instruments.
• Underwater acoustic sensors.
• Marine pressure sensors.
• Water-quality monitoring systems.
• Oceanographic data acquisition modules.
• Seabed observation platforms.
• Environmental monitoring equipment.

The MCDC10M can protect compatible female connector interfaces during cable replacement, maintenance, or equipment storage.

Offshore Monitoring Equipment

Offshore instrumentation can be exposed to seawater, salt spray, sediment, and demanding environmental conditions.For compatible 10-pin female connector interfaces, a dedicated male underwater dummy plug provides a practical protection solution during servicing and periods of disconnection.

Why Use a Dedicated Underwater Dummy Plug?

Underwater electrical connectors are precision components that require careful handling.Although a connector may not be carrying electricity while disconnected, the condition of its mating interface remains important.Leaving an underwater connector exposed can introduce several risks.

1. Contamination of the Mating Interface

Seawater deposits, suspended sediment, and fine debris may accumulate in exposed connector interfaces.Contamination can increase the cleaning and inspection required before subsequent mating.

2. Mechanical Damage During Handling

Unprotected connector interfaces may be damaged during equipment transportation, deployment, or maintenance.A properly fitted dummy plug provides a protective mating component during these activities.

3. Increased Maintenance Requirements

A contaminated interface may require additional cleaning and inspection before the electrical connector can be returned to service.Using a protective dummy plug helps establish a consistent maintenance procedure.

4. Exposure During Equipment Storage

Underwater instruments may remain disconnected for extended periods.A compatible dummy plug helps protect the mating interface during storage and transportation.

5. Protection of Spare Subsea Ports

Many subsea systems are designed with spare electrical ports for future expansion.A dedicated dummy plug allows these unused interfaces to remain protected while the system is configured for its current operating requirements.

Installation and Maintenance Recommendations

Correct installation is essential for reliable underwater connector protection.

Step 1: Confirm Connector Compatibility

Verify that the MCDC10M is being installed on a compatible 10-pin female Micro Circular connector.Check the connector model, contact arrangement, mating geometry, and required retention accessories.

Step 2: Inspect the Female Interface

Before installation, inspect the female connector for debris, damage, contamination, and abnormal wear.Do not install the dummy plug if visible damage or foreign material could interfere with correct mating.

Step 3: Clean the Connector

If cleaning is required, follow the approved connector maintenance procedure.Avoid sharp tools, abrasive materials, and chemicals that may damage the molded connector materials.

Step 4: Align the Dummy Plug

Align the MCDC10M with the corresponding female connector according to the mating interface.Do not force the plug into an incompatible or misaligned connector.

Step 5: Secure the Connection

Fully engage the dummy plug and use the appropriate locking or retaining accessory where specified.Confirm that the protective plug is properly secured before underwater deployment.

Step 6: Inspect After Recovery

After deployment, inspect the dummy plug and female connector interface for wear, damage, and contamination.Replace damaged protective accessories when necessary.

Frequently Asked Questions

Q1: What is the MCDC10M underwater dummy plug?

The MCDC10M is a 10-pin male protective dummy plug manufactured by HYSF SUBSEA. It is designed to protect compatible female Micro Circular underwater connector interfaces when they are not connected to operational cable assemblies.

Q2: Is the MCDC10M compatible with SubConn connectors?

The MCDC10M is designed for compatibility with corresponding SubConn-style Micro Circular 10-pin female connector interfaces. The exact mating configuration should be verified before installation.

Q3: Can the MCDC10M be used with MCBH10F?

Yes. The MCDC10M is intended to protect compatible MCBH10F 10-pin female bulkhead connectors.

Q4: Can the MCDC10M be used with MCIL10F?

Yes. It can also protect compatible MCIL10F 10-pin female inline underwater cable connectors.

Q5: Is MCDC10M male or female?

The MCDC10M is a male dummy plug.It is designed for compatible female connector interfaces.

Q6: Can MCDC10M protect an MCBH10M male bulkhead connector?

No. The MCDC10M has a male mating interface and is not intended to mate with another male connector.The corresponding MCDC10F female dummy plug is the appropriate model to evaluate for protecting an MCBH10M male connector.

Q7: Does the MCDC10M transmit electrical power or signals?

No. The MCDC10M is a protective accessory. It does not provide electrical power transmission, signal transmission, Ethernet communication, or electrical continuity.

Q8: Is the MCDC10M a shorting plug?

No. The standard MCDC10M is a protective dummy plug and should not be confused with an electrically wired shorting plug.

Q9: Can the MCDC10M be used underwater?

The MCDC10M is designed for underwater connector protection when correctly mated to a compatible female Micro Circular interface. Its suitability depends on proper engagement, retention, connector condition, and the qualification of the complete assembly.

Q10: Is the MCDC10M suitable for 6,000-meter applications?

The HYSF SUBSEA Micro Circular connector family has a stated depth capability of up to 6,000 meters. The final MCDC10M installation must be evaluated as part of the complete mated and qualified connector configuration.

Q11: Does the MCDC10M include an electrical cable?

No. The MCDC10M is a protective dummy plug rather than a cable-mounted operational connector.

Q12: Why is a dummy plug important for subsea equipment?

A properly selected dummy plug helps protect unused connector interfaces from seawater exposure, contaminants, and handling damage. It supports regular connector maintenance and equipment readiness.

HYSF SUBSEA MCDC10M – Reliable Protection for 10-Pin Female Subsea Connectors

The HYSF SUBSEA MCDC10M 10-Pin Male Underwater Dummy Plug is a practical protective accessory for compatible Micro Circular female underwater connectors.Designed for use with MCBH10F and MCIL10F female interfaces, it helps protect disconnected connector mating areas during subsea operation, equipment maintenance, transportation, and storage.Its compact molded construction and SubConn-compatible Micro Circular mating design make it suitable for ROVs, AUVs, underwater instruments, marine monitoring systems, subsea junction boxes, and offshore equipment.For applications requiring protection of unused 10-pin female underwater connector ports, the MCDC10M male dummy plug provides a straightforward way to support connector maintenance and long-term equipm
