MCDC21M 21-Pin Male Dummy Connector for Deep-Sea Connector Protection

The MCDC21M 21-pin male dummy connector from HYSF SUBSEA is a specialized underwater protective plug designed to protect unmated female Micro Circular electrical connectors in demanding marine and subsea environments.Featuring a compact 21-position male mating interface and a durable molded rubber body, the MCDC21M provides protection for compatible underwater connectors when their normal electrical cable assemblies are disconnected.The MCDC21M is designed for use with corresponding 21-pin female Micro Circular connectors, including the MCBH21F female bulkhead underwater connector and MCIL21F female inline underwater connector.It is particularly useful for remotely operated vehicles (ROVs), autonomous underwater vehicles (AUVs), oceanographic instruments, offshore monitoring equipment, underwater sensor networks, and marine research systems.In these applications, exposed connector interfaces may come into contact with seawater, sediment, dust, and other contaminants during maintenance, storage, transportation, or equipment deployment.The MCDC21M helps protect these interfaces by providing an appropriately matched protective cover.As part of the HYSF SUBSEA Micro Circular connector accessory range, the MCDC21M is intended for use in demanding underwater environments. The corresponding connector family is designed for pressure conditions reaching approximately 60 MPa, equivalent to about 6,000 meters of seawater.Unlike a functional underwater electrical connector, the MCDC21M is a protective dummy plug. It is not designed to transmit electrical power, communication signals, or data.

Key Features of the MCDC21M Underwater Dummy Connector

The MCDC21M combines a compact high-density connector interface with protective features suited to underwater equipment.Key features include:

• 21-pin male dummy configuration: Designed for compatible 21-pin female Micro Circular connector interfaces.
• Underwater protective function: Helps protect unused female connectors from environmental contamination.
• Durable molded rubber construction: Suitable for demanding marine handling and storage conditions.
• Compact Micro Circular design: Supports protection of high-density electrical interfaces in space-constrained underwater equipment.
• Deep-sea connector family: Developed for subsea systems operating under demanding pressure conditions.
• SubConn-compatible interface: Designed for corresponding SubConn-style Micro Circular connectors, subject to configuration verification.
• Connector contact protection: Helps reduce exposure to dirt, sediment, moisture, and mechanical damage.
• Convenient installation: Designed to be fitted when the functional cable connector is disconnected.
• Reusable protective accessory: Suitable for repeated maintenance operations when properly handled.
• Wide range of applications: ROVs, AUVs, offshore inspection systems, underwater instruments, and marine monitoring equipment.

These features make the MCDC21M a practical accessory for engineers searching for a 21-pin male underwater dummy plug for female subsea connectors.

MCDC21M Technical Specifications

パラメータ	仕様
Brand	HYSF SUBSEA
Model Number	MCDC21M

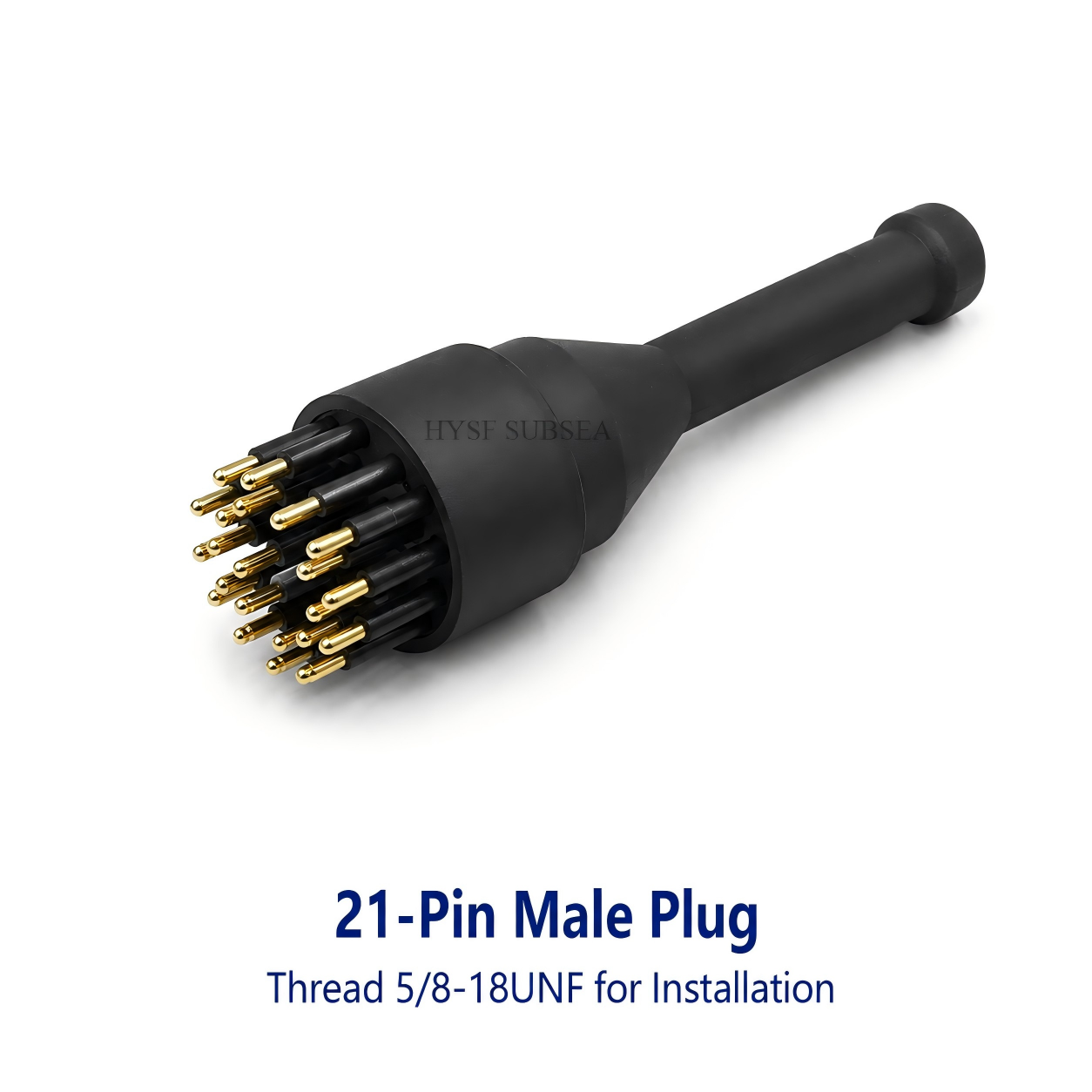

Product Name	21-Pin Male Dummy Connector
Connector Series	Micro Circular
Product Type	Underwater Protective Dummy Plug
Connector Gender	Male
Interface Configuration	21-Pin
Standard Body Material	Neoprene Rubber
Primary Function	Protection of Unmated Female Connectors
Electrical Transmission	Not Intended for Power or Signal Transmission
Connector Family Pressure Capability	Up to 60 MPa
Approximate Series Depth Rating	6,000 m Seawater
Compatible Female Bulkhead Connector	MCBH21F
Compatible Female Inline Connector	MCIL21F
Brand Compatibility	Corresponding SubConn and SEACON Micro Circular Interfaces
Typical Applications	ROV, AUV, Marine Research and Subsea Instrumentation
Warranty	12 Months

Important: The 60 MPa value refers to the relevant connector family’s nominal pressure capability. Pressure suitability for a particular dummy plug installation depends on the approved mating configuration, sealing arrangement, retention method, and operating conditions.

Why Underwater Connectors Need Dummy Plugs

Underwater electrical connectors are essential components in marine equipment.They connect sensors, control systems, cameras, instruments, and other electrical devices to subsea equipment housings or cable assemblies.During normal operation, a connector may remain mated to its corresponding working cable.However, when equipment is disconnected for maintenance, storage, or replacement, the unused connector interface can become exposed.This exposure may create several risks, including:

• Seawater contamination
• Salt accumulation
• Sediment entering the connector interface
• Mechanical damage during handling
• Contamination of electrical contact surfaces
• Damage caused by improper storage
• Marine deposits accumulating around connector features
• Increased cleaning requirements before the next deployment

A correctly selected dummy connector helps reduce these risks.The MCDC21M underwater protective plug is intended to protect compatible 21-pin female connector interfaces while their normal mating connectors are absent.For equipment that undergoes frequent servicing or reconfiguration, protective dummy plugs are useful maintenance accessories.

Protection for High-Density Female Connector Interfaces

A 21-pin connector contains a relatively high number of electrical contacts within a compact interface.This high contact density is useful for complex underwater electrical systems, but it also makes correct handling and protection important.Female Micro Circular connectors contain multiple socket contacts arranged within a defined mating interface.When the connector is not in use, contaminants may enter the interface and affect subsequent mating operations.The MCDC21M is designed to provide a protective connection to corresponding female interfaces.For example, an underwater vehicle may have a MCBH21F female bulkhead connector installed on its pressure housing.The connector may normally be connected to an external sensor assembly.If the sensor is removed for maintenance, the MCDC21M can be used to protect the available female connection point.Similarly, an MCIL21F female inline connector on a spare underwater cable assembly may require protection during storage or transportation.Using an appropriate dummy plug helps maintain the condition of the connector until it is needed again.

Durable Neoprene Rubber Construction

The standard MCDC21M uses a molded neoprene rubber body.Neoprene is commonly used in underwater connector applications because it provides flexibility and resistance to moisture.The rubber construction helps provide a protective interface suited to marine environments.Subsea equipment may experience:

• Frequent deployment and recovery
• Exposure to seawater
• Offshore storage conditions
• Mechanical handling
• Equipment vibration
• High humidity
• Contact with sediments and marine contaminants

A compact molded dummy connector is useful for protecting unused electrical interfaces in these conditions.The MCDC21M does not require a cable because it is a protective accessory rather than a working electrical cable connector.This makes it convenient to store alongside spare cables and underwater equipment components.

Deep-Sea Protection for 6,000-Meter Connector Systems

The HYSF SUBSEA Micro Circular connector family includes configurations designed for pressure conditions reaching approximately 60 MPa, corresponding to around 6,000 meters of seawater.The MCDC21M is part of the protective accessory range for this family.Its purpose is to protect compatible female electrical connector interfaces when the normal working connector is disconnected.However, a dummy connector’s protective role must be distinguished from the electrical and mechanical performance of a complete functional cable assembly.For deep-sea applications, the following factors should be verified:

1. Correct connector interface
2. Proper male-to-female alignment
3. Compatible retention hardware
4. Condition of sealing surfaces
5. Absence of physical damage
6. Installation requirements
7. Pressure qualification of the specific dummy connector arrangement

For long-duration underwater deployments, the complete assembly should be assessed according to the equipment’s operational requirements.

Compatible HYSF SUBSEA Connectors

The MCDC21M is designed for corresponding 21-pin female Micro Circular connector interfaces.

MCBH21F – 21-Pin Female Bulkhead Underwater Connector

The MCBH21F is a female bulkhead connector designed for installation on subsea equipment housings.It provides an electrical connection point between the internal equipment wiring and an external underwater cable assembly.When the working male cable connector is disconnected, the MCDC21M can be used to protect its female interface.This arrangement is suitable for:

• ROV electronic housings
• AUV pressure vessels
• Underwater control modules
• Subsea sensor housings
• Marine monitoring equipment
• Oceanographic instruments

MCIL21F – 21-Pin Female Inline Underwater Connector

The MCIL21F is a cable-mounted female Micro Circular connector.It is designed to mate with compatible 21-pin male connectors during normal electrical operation.When the cable assembly is disconnected, the MCDC21M can help protect the female connector interface.This is useful for cable storage, servicing, transportation, and equipment maintenance.

MCDC21M vs. MCDC21F

Selecting the correct dummy connector gender is essential.

Dummy Connector	Gender	Connector Interfaces Protected
MCDC21M	Male	MCBH21F / MCIL21F
MCDC21F	Female	MCBH21M / MCIL21M

The MCDC21M has a male mating interface and is intended for compatible female connectors.The MCDC21F has a female mating interface and is intended for compatible male connectors.The two dummy connectors are not interchangeable.

SubConn and SEACON Compatible Micro Circular Design

HYSF SUBSEA manufactures Micro Circular underwater connectors designed for compatibility with corresponding SubConn and SEACON connector configurations.The MCDC21M is relevant to customers seeking a SubConn-compatible 21-pin male dummy plug for existing subsea electrical systems.However, a matching contact count alone does not guarantee interchangeability.Before using the MCDC21M with another manufacturer’s connector, verify:

• Connector family
• Number of contact positions
• Male or female interface
• Contact arrangement
• Mechanical keying
• Mating dimensions
• Locking or retention mechanism

The MCDC21M is intended for the corresponding Micro Circular interface, not for unrelated Standard Circular or dedicated Ethernet connector families.

Typical Applications of the MCDC21M Dummy Plug

1. ROV Electrical Connector Protection

ROVs often include several external electrical connection points for sensors, cameras, and auxiliary equipment.Some connectors may remain unused during particular missions.The MCDC21M can help protect compatible female interfaces when their working cables are disconnected.

2. AUV Equipment Maintenance

Autonomous underwater vehicles frequently use modular payloads and scientific instruments.During equipment servicing, removed components may leave connector interfaces exposed.A suitable dummy connector can help protect these interfaces until the system is reassembled.

3. Oceanographic Research Equipment

Marine research instruments often require repeated deployment and retrieval.The MCDC21M can protect compatible 21-pin female connectors during storage, transportation, and maintenance activities.

4. Underwater Sensor Networks

Subsea monitoring equipment may contain multiple sensor connection points.When a sensor is temporarily removed, its corresponding female connector interface can be protected using an appropriate dummy plug.

5. Offshore Inspection Equipment

Offshore inspection systems use electrical connectors for instrumentation and control devices.The MCDC21M helps protect unused female connector interfaces during servicing and equipment preparation.

6. Marine Cable Assembly Storage

Spare underwater cable assemblies may be stored for extended periods.Using compatible protective dummy connectors helps reduce the risk of contamination and accidental damage to exposed electrical interfaces.

Installation and Maintenance Recommendations

Correct dummy connector handling is important for reliable protection.Step 1: Confirm CompatibilityVerify that the working connector is a compatible 21-pin female Micro Circular model.Step 2: Inspect the ConnectorCheck the female connector interface for dirt, sediment, damage, or foreign particles.Step 3: Clean if NecessaryFollow the applicable manufacturer cleaning instructions. Avoid damaging socket contacts and sealing surfaces.Step 4: Align the Dummy PlugPosition the MCDC21M correctly against the female connector interface.Step 5: Install CarefullyMate the connector without excessive force.Step 6: Secure the ConnectionUse the specified locking or retention arrangement where applicable.Step 7: Inspect During MaintenanceAfter removing the dummy plug, inspect the working connector before installing the functional cable assembly.For submerged equipment, follow the approved operating procedures and pressure qualification requirements.

Dummy Connector vs. Working Electrical Connector

Although the MCDC21M belongs to the Micro Circular connector family, it does not perform the same function as the MCIL21M or MCIL21F.A working electrical connector transmits power or signals through a cable assembly.A dummy connector protects an unused mating interface.Therefore, the MCDC21M is not intended to function as:

• An electrical power connector
• A signal transmission connector
• An Ethernet connector
• A cable extension
• An electrical jumper
• A shorting plug
• An operational cable termination

If a project requires an electrical shorting function, a separately engineered shorting dummy connector must be specified.

Frequently Asked Questions

What is the MCDC21M?

The MCDC21M is a 21-pin male underwater dummy connector manufactured by HYSF SUBSEA. It is designed to protect compatible female Micro Circular connector interfaces when they are not connected to working cable assemblies.

Is MCDC21M male or female?

The MCDC21M is a male dummy connector.

Which connectors are compatible with MCDC21M?

The main compatible HYSF SUBSEA models are the MCBH21F female bulkhead connector and MCIL21F female inline connector, subject to mechanical configuration verification.

Can MCDC21M transmit electrical power?

No. The MCDC21M is intended for protective use and is not designed for operational electrical power or signal transmission.

What material is used for MCDC21M?

The standard connector body is made from durable neoprene rubber.

Is MCDC21M compatible with SubConn connectors?

The MCDC21M is designed for corresponding SubConn-style Micro Circular interfaces. Exact mating compatibility should be verified before cross-brand use.

What is the difference between MCDC21M and MCDC21F?

The MCDC21M is a male protective plug for female connectors. The MCDC21F is a female protective plug for male connectors.

Can MCDC21M be used in deep-sea applications?

The MCDC21M belongs to the HYSF SUBSEA Micro Circular accessory range. Its suitability for deep-sea operation depends on the approved connector combination and pressure qualification.

Does the MCDC21M include a cable?

No. The MCDC21M is a protective dummy plug and does not require an operational cable assembly.

Reliable Protection for 21-Pin Female Subsea Connectors

The HYSF SUBSEA MCDC21M 21-pin male underwater dummy connector provides a practical protective solution for high-density Micro Circular electrical interfaces.Its compact design, molded rubber construction, and compatibility with corresponding female underwater connectors make it suitable for ROVs, AUVs, oceanographic instruments, underwater sensor networks, and offshore monitoring equipment.For engineers searching for a 21-pin male underwater dummy plug, a SubConn-compatible Micro Circular protective connector, or a deep-sea protective cap for female bulkhead connectors, the MCDC21M offers a suitable accessory within the HYSF SUBSEA underwater connector family.
