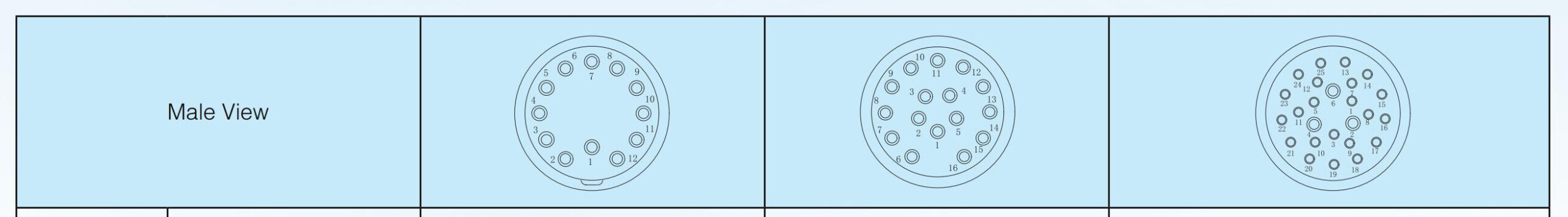

Standard 12/16/25 Pin Watertight Connectors

Product Overview & Series Introduction

Den Standard 12/16/25 Pin Watertight Connectors series by HYSF Subsea (Xiamen Chuida Technology Co., Ltd.) sets the global engineering benchmark for high-density, wet-mateable power and complex multi-channel signal transmission systems. Purpose-built to endure continuous submersion under extreme deep-sea hydrostatic pressures and in highly corrosive maritime environments, this deep-sea rubber series provides absolute mission-critical reliability. Developed via advanced independent innovation, our high-density interconnect architecture breaks the long-standing monopoly of international brands, serving as a premium domestic substitution for imported core marine products.

Every configuration in this series is manufactured through a unibody High-Temperature Vulcanization (HTV) process, integrally forming gold-plated copper contacts within heavy-duty, high-temperature vulcanized neoprene rubber bodies. This advanced construction guarantees robust environmental sealing and superior conductivity across complex pin counts. To optimize space usage on high-density data hulls, pressure vessels, and oceanographic arrays, the series is available in versatile structural formats[cite: 1]:

• Cable Solutions: Standard Male/Female heavy-duty inline cable assemblies (IL12M to IL25F) featuring high-flexibility polyurethane or neoprene outer sheaths engineered to withstand rugged deployment forces[cite: 1].
• Bulkhead Feedthrough Receptacles: Premium threaded receptacles (BH12M to BH25F) designed for stable enclosure penetration[cite: 1]. The receptacle bases feature high-temperature silver-plated internal wiring connected to gold-plated terminals and can be machined from elite marine metals—including 316L Stainless Steel, Titanium Alloy, or Naval Brass—paired with specialized fluororubber O-rings[cite: 1].
• Infrastructure Fittings & Protection: Hardened oilfield-type pressure-balanced receptacles (PBOF12M to PBOF25F) for deep-water hydraulic balance, alongside protective dummy sealing plugs (DC12M to DC25F) to isolate and shield inactive electrical circuits[cite: 1].

Key Technical Specifications & Core Features

• 100% Brand Interchangeability: Meticulously engineered to comply with international subsea standards, ensuring full interface compatibility and direct interchangeability with leading global brands such as SubConn and Seacon, minimizing spare parts overhead[cite: 1].
• Wet-Mateable Performance: Features tight-tolerance rubber sealing lips that successfully wipe away moisture during mating cycles, allowing safe underwater connecting and disconnecting operations while fully submerged or in severe splash-zones[cite: 1].
• Deep-Sea Pressure Rating: Extensively verified at a test pressure of 60MPa to guarantee absolute zero-leakage and zero structural deformation at operational diving depths reaching 6,000 meters[cite: 1].
• High-Density Electrical Parameters: Rated for a steady voltage profile up to 550V AC/DC[cite: 1]. The 12-pin and 16-pin variants support 10A per pin, while the ultra-dense 25-pin layout safely distributes variable current ranges up to 5A/10A[cite: 1]. Features low contact resistance ($<0.01\Omega$) and high insulation resistance ($\ge 200\text{M}\Omega$ @ 1000V DC)[cite: 1].
• Extreme Structural Endurance: Certified for a mechanical mating life exceeding 500 cycles within a brutal operating temperature envelope stretching from $-60^\circ\text{C}$ up to $+80^\circ\text{C}$[cite: 1].

Industrial Applications & Working Conditions

Den Standard 12/16/25 Pin Subsea Rubber Series is uniquely designed to support synchronous power routing and multi-channel data streaming under high-vibration, deep-water hydrostatic loads, intense salt spray, and severe UV exposure[cite: 1]. Critical deployment sectors include:

1. Multi-Channel Marine Robotic Systems (ROVs & AUVs)

Acts as the main high-density umbilical and sensor breakout interface for medium-to-heavy Remotely Operated Vehicles (ROVs), Autonomous Underwater Vehicles (AUVs), and deep-sea submersibles[cite: 1]. The high pin density permits consolidated routing of thruster telemetry, control loops, and multi-sensor data streams through a single pressure hull opening[cite: 1].

2. Advanced Sonar Platforms & Hydrophone Arrays

Serves as the mission-critical communication backbone for underwater acoustic detection equipment, seismic monitoring arrays, and towed sonar systems[cite: 1]. The high insulation threshold and low contact resistance prevent signal cross-talk and transmission attenuation, ensuring pristine data integrity[cite: 1].

3. Integrated Underwater Video & Illuminated Sensor Packages

Deploys seamlessly across integrated underwater camera and lighting assemblies[cite: 1]. The multi-pin structure accommodates mixed lines, powering high-brightness LED searchlights while simultaneously driving high-definition digital video signals (such as Gigabit Ethernet or Coaxial feedback loops) back to central command modules[cite: 1].

4. Offshore Energy, Drilling, & Seabed Networks

Utilized extensively in offshore wind farm monitoring, subsea oil drilling manifolds, marine hydrological stations, and national defense systems[cite: 1]. The tough neoprene body resists biofouling and marine growth, and handles massive mechanical shock and pulling loads during heavy-sea deployment and recovery operations[cite: 1].
