Are your connectors difficult to install?

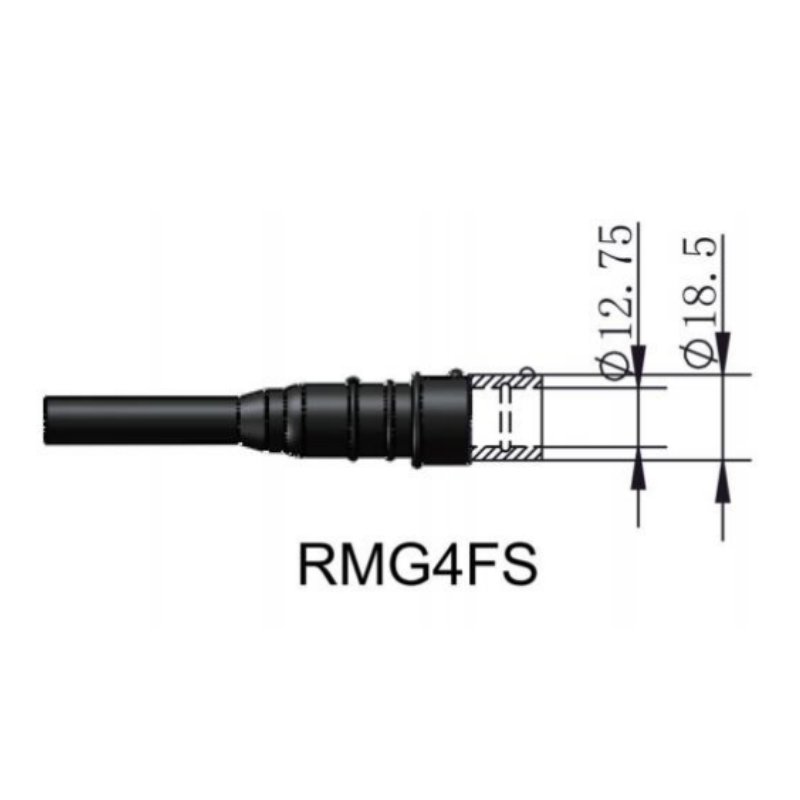

Connector Installation – Easy Guide

Installation Difficulty Level

Rating: ⭐⭐☆☆☆ (Easy to Moderate)

Time required: 15-30 minutes per connector (first time)

Time after practice: 5-10 minutes per connector

Special tools: Basic wire tools (strippers, soldering iron)

Skill level: Basic electrical knowledge sufficient

What You’ll Need

Basic Tools

• ✅ Wire strippers
• ✅ Small screwdriver or pick tool
• ✅ Soldering iron (for tinning)
• ✅ Wire cutters
• ✅ Multimeter (for testing)

Materials

• ✅ Connector (obviously!)
• ✅ Epoxy or potting compound
• ✅ Isopropyl alcohol (for cleaning)
• ✅ Heat shrink tubing (optional)
• ✅ Electrical tape (optional)

Optional (Helpful)

• Magnifying lamp (for small connectors)
• Helping hands tool (holds connector while working)
• Heat gun (for heat shrink)

Step-by-Step Installation

Step 1: Prepare Cable (5 minutes)

1. Cut cable to desired length (add extra for mistakes)
2. Strip outer jacket to expose conductors (20-30mm)
3. Strip individual conductors (5-7mm)
4. Tin conductor ends with solder (prevents fraying)

Tip: Don’t strip too much – exposed wire should only be where it connects to contact.

Step 2: Insert Wires (5 minutes)

1. Identify pinout diagram (included with connector)
2. Insert each wire into correct contact position
3. Ensure wire is fully seated
4. Gently tug each wire to confirm secure

Tip: Work systematically (pin 1, then 2, then 3…) to avoid mistakes.

Step 3: Pot/Seal (5 minutes + cure time)

1. Mix epoxy according to instructions
2. Fill connector backshell with epoxy
3. Ensure no air bubbles
4. Let cure (typically 24 hours at room temp)

Tip: Use slow-cure epoxy for better penetration and fewer bubbles.

Step 4: Assemble Housing (5 minutes)

1. Install O-ring (lubricate with silicone grease)
2. Screw connector halves together
3. Torque to specification (don’t overtighten!)
4. Install protective caps

Tip: Hand-tight plus 1/4 turn is usually sufficient.

Step 5: Test (5 minutes)

1. Visual inspection (check for obvious issues)
2. Continuity test (multimeter, each pin)
3. Insulation resistance test (if equipment available)
4. Document results

Video Tutorials

We provide video tutorials for each connector series:

• 📹 MCBH Series Installation
• 📹 MCM Series Installation
• 📹 Cable Assembly Best Practices
• 📹 Troubleshooting Common Issues

Request access: support@hysfsubsea.com

Common Installation Mistakes

Mistake 1: Wrong Wire Strip Length

Problem: Too much exposed wire causes shorts; too little causes poor connection

Solution: Follow manufacturer’s recommended strip length (usually 5-7mm)

Mistake 2: Crossed Wires

Problem: Wires in wrong pin positions

Solution: Double-check pinout diagram before inserting; test before potting

Mistake 3: Insufficient Potting

Problem: Water ingress through back of connector

Solution: Fill completely with epoxy; ensure no voids or bubbles

Mistake 4: Overtightening

Problem: Damaged threads or crushed O-ring

Solution: Hand-tight plus 1/4 turn; use torque wrench if specified

Mistake 5: Dirty/Damaged O-ring

Problem: Leaks at mating interface

Solution: Inspect O-ring before assembly; replace if damaged; lubricate

Installation Support

Documentation Provided

• ✅ Detailed installation instructions (PDF)
• ✅ Pinout diagrams
• ✅ Torque specifications
• ✅ Troubleshooting guide

Technical Support

• 📧 Email: support@hysfsubsea.com
• 💬 Live chat on website
• 📞 Phone: +86 13942853869
• 📹 Video call support available (by appointment)

Training Options

• Self-paced: Video tutorials and documentation
• Live training: Video call with our engineer (free for customers)
• On-site: For large volume customers (fee applies)

Pre-Assembled Option

Don’t want to install yourself?

We offer complete cable assemblies:

• Connector professionally installed
• 100% tested (pressure and electrical)
• Ready to use out of the box
• Custom lengths available
• Only 20-30% more than connector alone

Often worth it for:

• Small quantities (<10 units)
• Critical applications
• No in-house assembly capability
• Time-sensitive projects

Practice Makes Perfect

First-time installation tips:

1. Order 1-2 extra connectors for practice
2. Watch video tutorial before starting
3. Work in clean, well-lit area
4. Take your time (rushing causes mistakes)
5. Test thoroughly before deployment
